Standard Size 2″ Galvanized Baffle Grease Filters

$34.59$61.62



$34.59
$38.55
$39.69
$43.86
$39.33
$43.47
$53.88
$53.31
$43.86
$61.62
$61.62
SKU: N/A Category:

Description

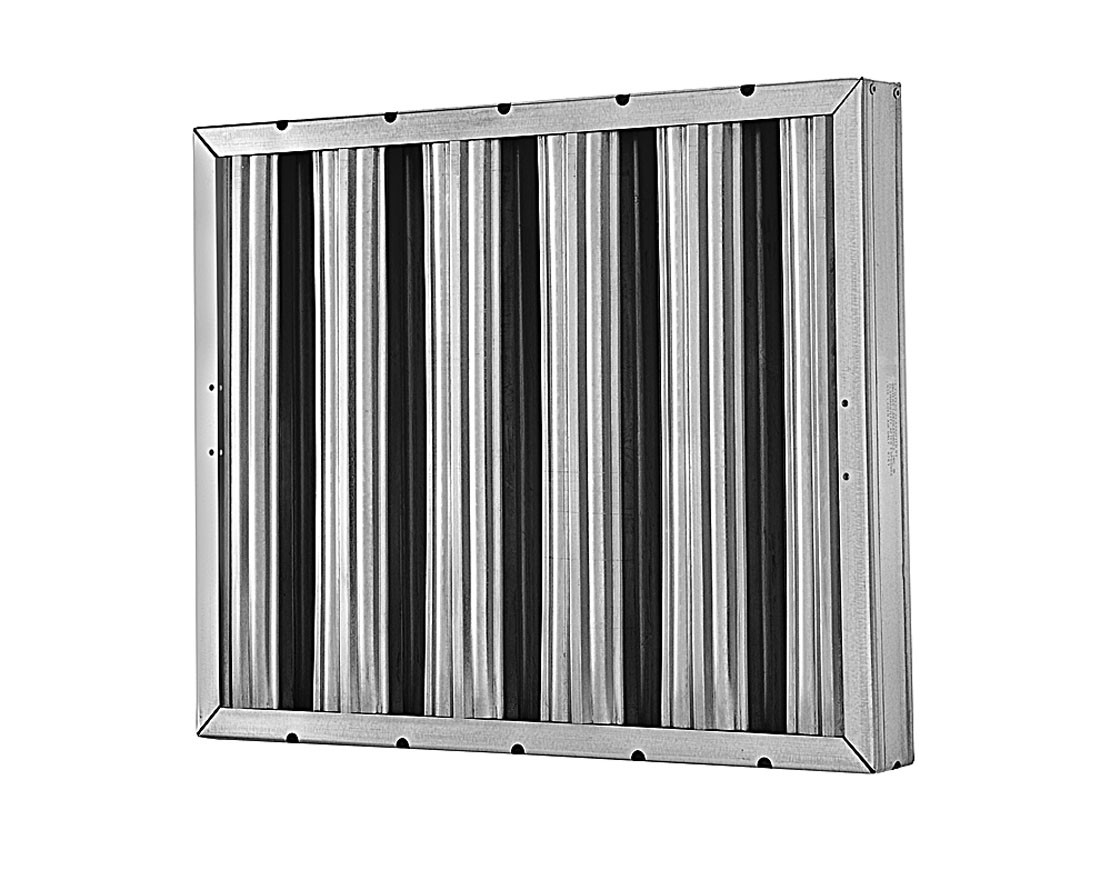

These filters, commonly known as “Fire Patrol”, are made from G60 Hot Dipped galvanized steel. The unique roll formed baffles are designed to collect grease and prevent flames from passing through. The maximum operating temperature is 450 degrees F. They are UL classified and meet NFPA standard 96.

All standard sizes are undersize 1/2″ on width and length and 1/8″ on thickness. Custom sizes are +/- 1/8″ on width and length.

Additional information

Thickness

2"

Standard Filter Dimensions

10" x 20", 16" x 16", 16" x 20", 16" x 25", 20" x 16", 20" x 20", 20" x 25", 24" x 24", 25" x 16", 25" x 20", 25" x 25"

Material

Galvanized
